Price:
$189.99 - $179.99
(as of Jan 06, 2025 06:11:15 UTC –
Details
)
Product Description

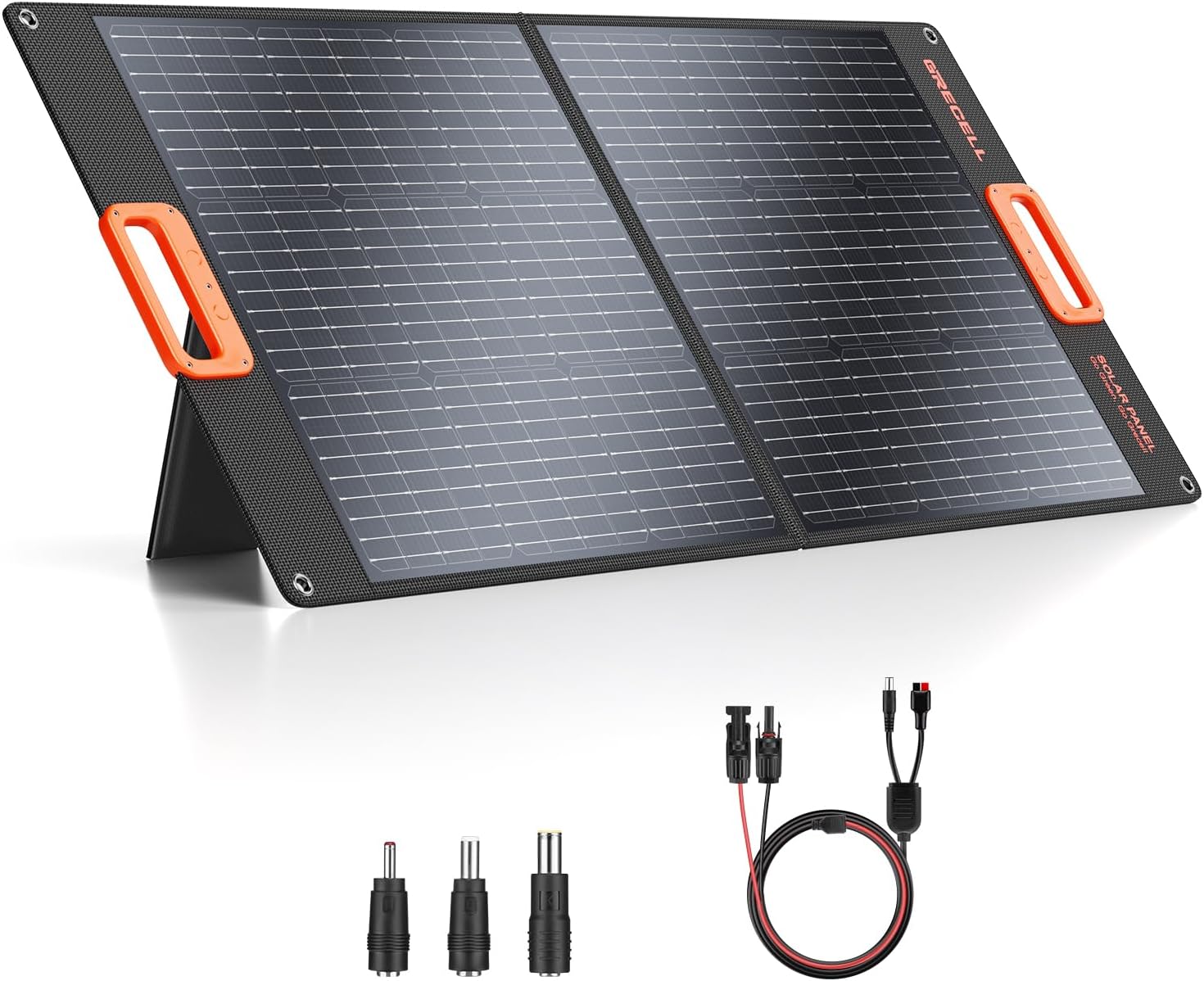

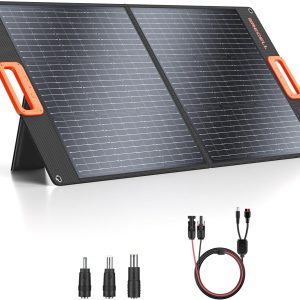

GRECELL 100W 20V Portable Foldable Solar Panel for Solar Generator
GRECELL 100W Portable Solar Panel is a small size, foldable design, reliable solar charger with an easy-carry TPE rubber handle and two adjustable kickstands, which made it suited for applications that require a smaller footprint. With up to 23.7% high efficiency monocrystalline solar cells, you will get greater power efficiency than polycrystalline solar panels. The advanced ETFE laminated technology and the long-lasting water-resistant 840D Oxford cloth material make it a favorite for those with RVs, campers, and on the road, ideally suited for outdoor living or even unexpected power outages.
Specifications:
Solar Cell: Monocrystalline Silicon Cell
Cell Efficiency: 23.5%
Maximum Power: 100W
Surface Treatment: ETFE Lamination
Power Voltage/Power Current: 20V/5A
Open Circuit Voltage/Short Circuit Current: 23.85V/5.25 A

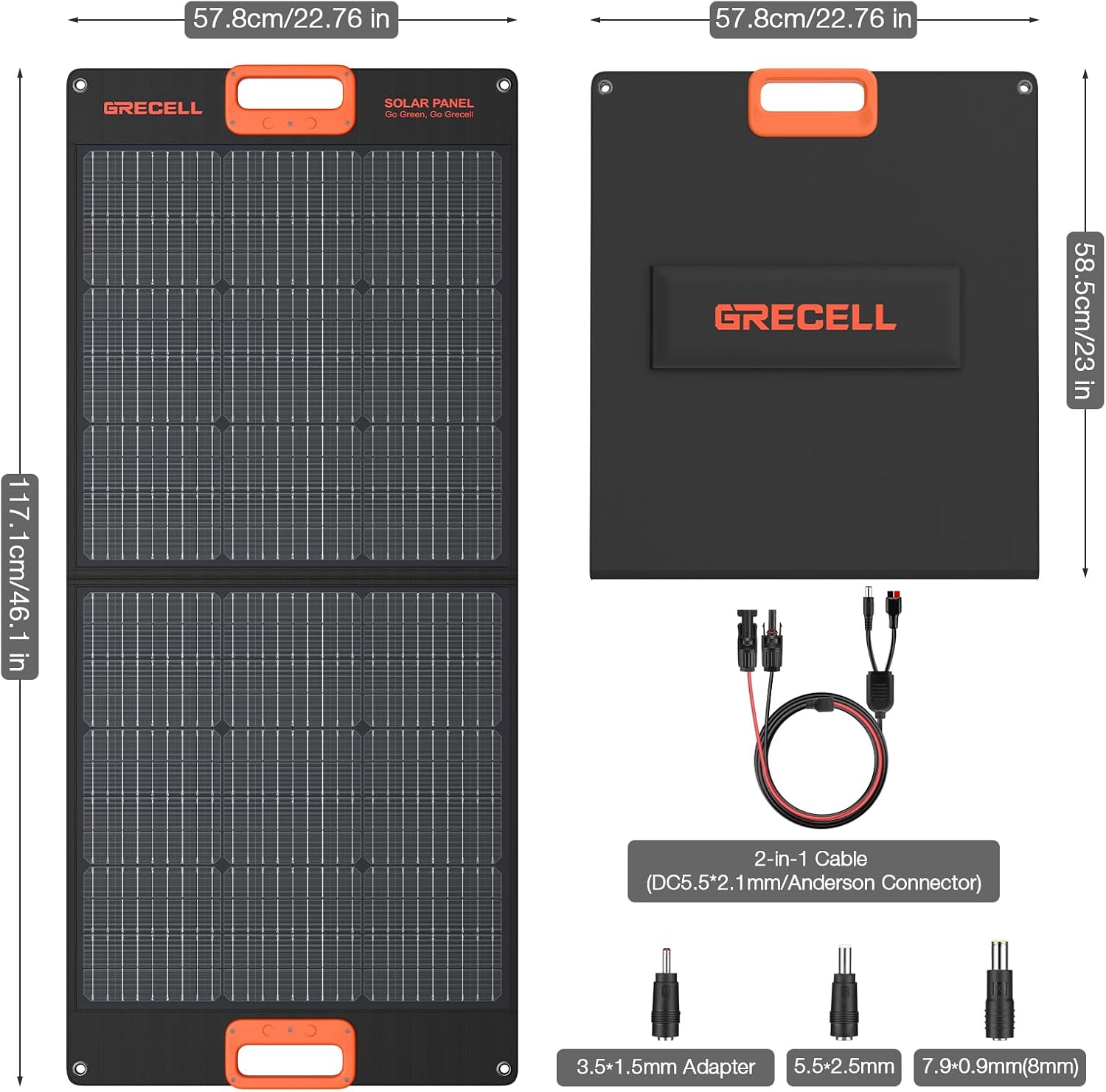

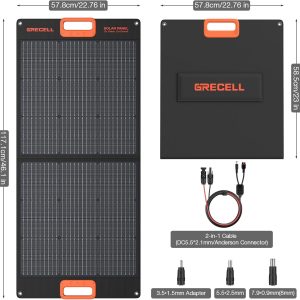

Folded/Unfolded Dimensions: 25.2*21.1*2.5in/46.1*22.76*0.6in
Weight: 4.1kg (±0.5kg) / 9.04lbs (±1.1lbs)
Operating/Storage Temperature: 14°F to 140°F (-10°C to 60°C)

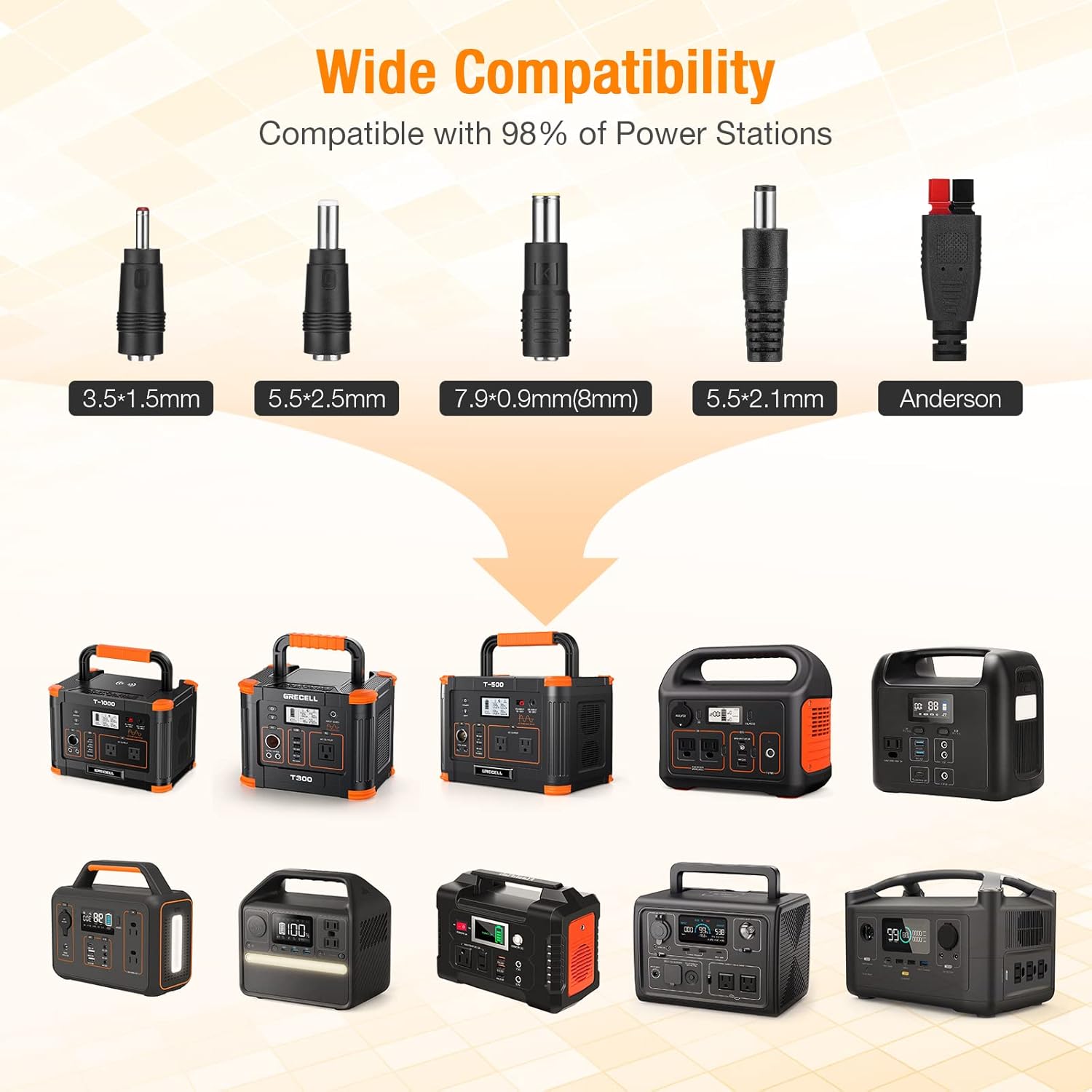

5 Port Outputs Meet Most of Your Demands
2-in-1 Cable: Anderson Connector for Jackery Explorer 1000, ROCKPALS 300W, Ecoflow, and other solar generators.
2-in-1 Cable: DC 5.5*2.1mm Connector for Rockpals 250W/350W/500W, FlashFish 200W/300W, PAXCESS ROCKMAN 200/300W/500W, PRYMAX 300W/SinKeu HP100 portable generator.
DC 5.5*2.5mm Adapter for Suaoki 400wh portable generator, GRECELL 300W power station
DC 7.9*0.9/8mm Adapter for Jackery Explorer 160/240/300/500/1000, Goal Zero Yeti 160/240/300, BALDR 200/330W, Anker 521 Power Station,BLUETTI EB 240.
DC 3.5*1.5mm Adapter for Suaoki S270, ENKEEO S155, Paxcess 100W, Aiper 150W, JOYZIS, MARBERO portable generator.
You can also buy a charge controller cable, a charge controller, a charge controller to Alligator clip cable separately, connecting them with our Solar Panel to provide endless power for 12-volt batteries (AGM, LiFePo4, lead-acid, gel, lithium, deep cycle batteries) of cars, boats, ships, trailers, and RVs.
SMART CHARGING TECHNOLOGY–How to Build the Series or Parallel Connection?

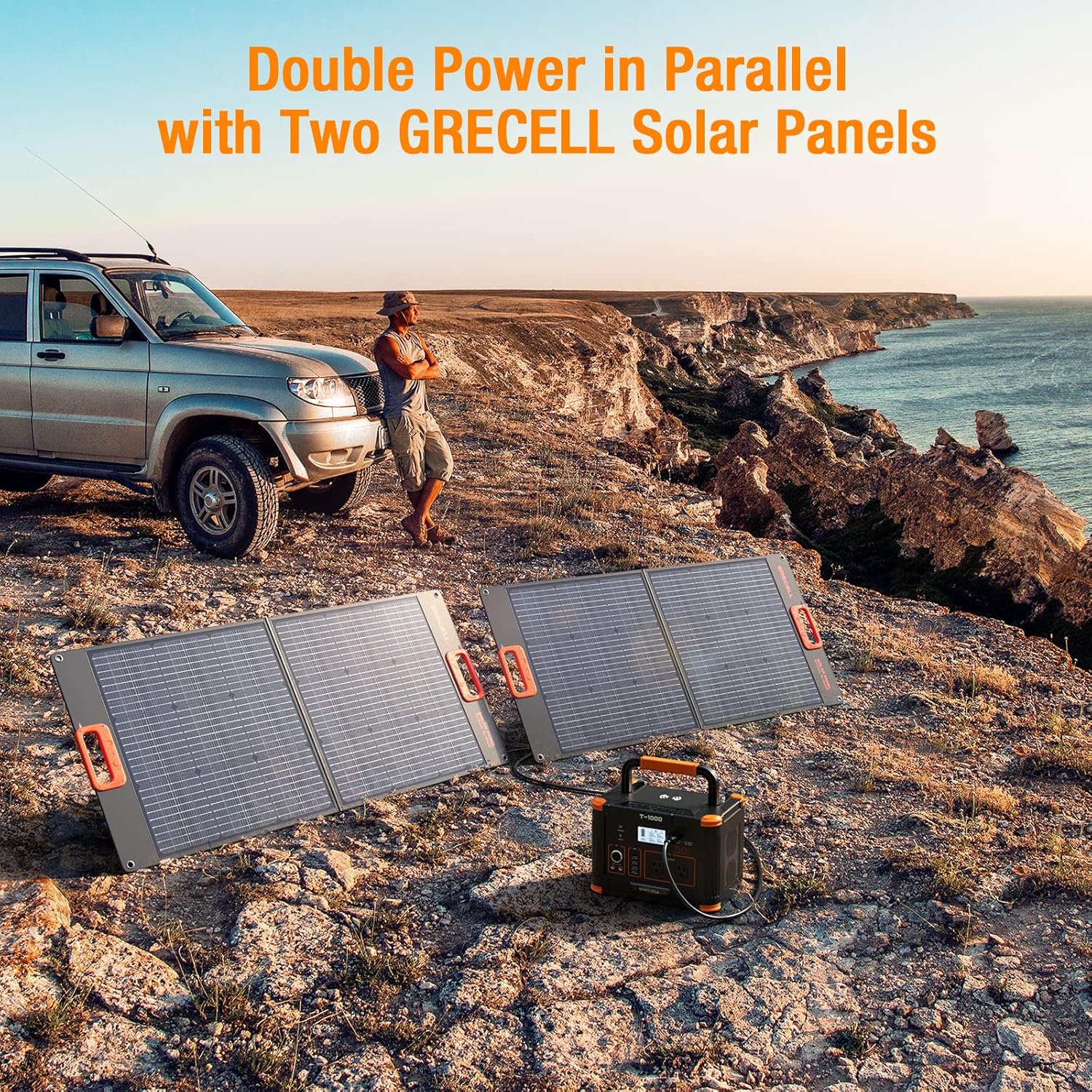

A single 100W solar panel is great for small device charging. With a professional parallel connector, you can also parallel 2 GRECELL100W solar panels to get more output power to recharge the high-capacity power stations faster.
The solar panel is equipped with PV-rated cables. The Positive connector is a male connector and the negative connector is a female connector, these wires by themselves are rated for series connections.
When the solar panels are connected in series (+ connected to -, + connected to-), the voltage is added;
when the solar panels are connected in parallel (+ connected to +,-connected to -), the current is added.
FAQ
Q1: Why Doesn’t My Solar Panel Reach Its Rated 100W?
A: The specifications provided were determined in a laboratory setting that has constant and controlled conditions. When a solar panel is actually being used, it is normal that the actual power does not reach the rated power. Solar panel efficiency is affected by many factors. Below are the factors that may affect the actual power output: Sunlight Intensity, Panel Surface Temperature, Sunlight Exposure Angle(90-degree), the Input limit of the device being charged, and Other Interferents like tree/cloud shadows, foreign objects, dust, or other sticky substances, etc. Please try to test your solar panel under full sunlight, cloudy weather may affect its normal working power, and make sure there is nothing shadow cast on the panel.
Faulty state: The product may be faulty if there is no power or the power is much less than the rated data if the above conditions are all satisfied.
Q2: How to Clean the Solar Panel Surface and Store It?
A: Do not place it under the rain, or soak it in water for a long time(Note: The junction port is not waterproof, please keep it dry). Use a soft cloth to remove the dust and dirt on the surface. Then use a damp cloth to wipe the surface of the solar panel to remove any remaining dust or dirt. Any debris should be removed as soon as possible to avoid a reduction in performance. Please note that put it in the clean,dry,cool environment to dissipate heat after using.
Q3: Are There Any Precautions for Using GRECELL 100W Portable Solar Panel?
A: Please check the model, size, voltage, and power of your original adapter to ensure compatibility before purchasing the product.
Please check whether the output voltage of the solar panel (12V-20V) is in the range of the input voltage of your power station.
Please do not press the solar panel with heavy objects, or it will damage the chips inside.
Unique Magnetic Design
Different from other solar panels’ buckle or velcro folding, our solar panel is designed with magnetic closure which is more convenient to use. The low-voltage system avoids electric shock hazards to ensure the safety of usage.
Ideal for Outdoor Activities
Designed with 4 hanging holes, convenient to tie on a car roof, RV, or a tree, and charges devices freely when you are driving, fishing, climbing, hiking, and anywhere you go, providing endless power for your power station under the sun, without having to rely on a wall outlet or a power bank, and bringing you an unplugged lifestyle.
Take Wherever You Go
Small solar panel equipped with 2 adjustable kickstands enabling you to get the max sunlight. 2 folds design, 10.3 pounds of weight, and TPE rubber handle allows you to take easily when you do outdoor activities, camping, hiking, off-grid living, etc. The zippers on the pocket can hold accessories and protect the power port from any rain or dust. Empower your outdoor adventures with more flexibility and possibility.

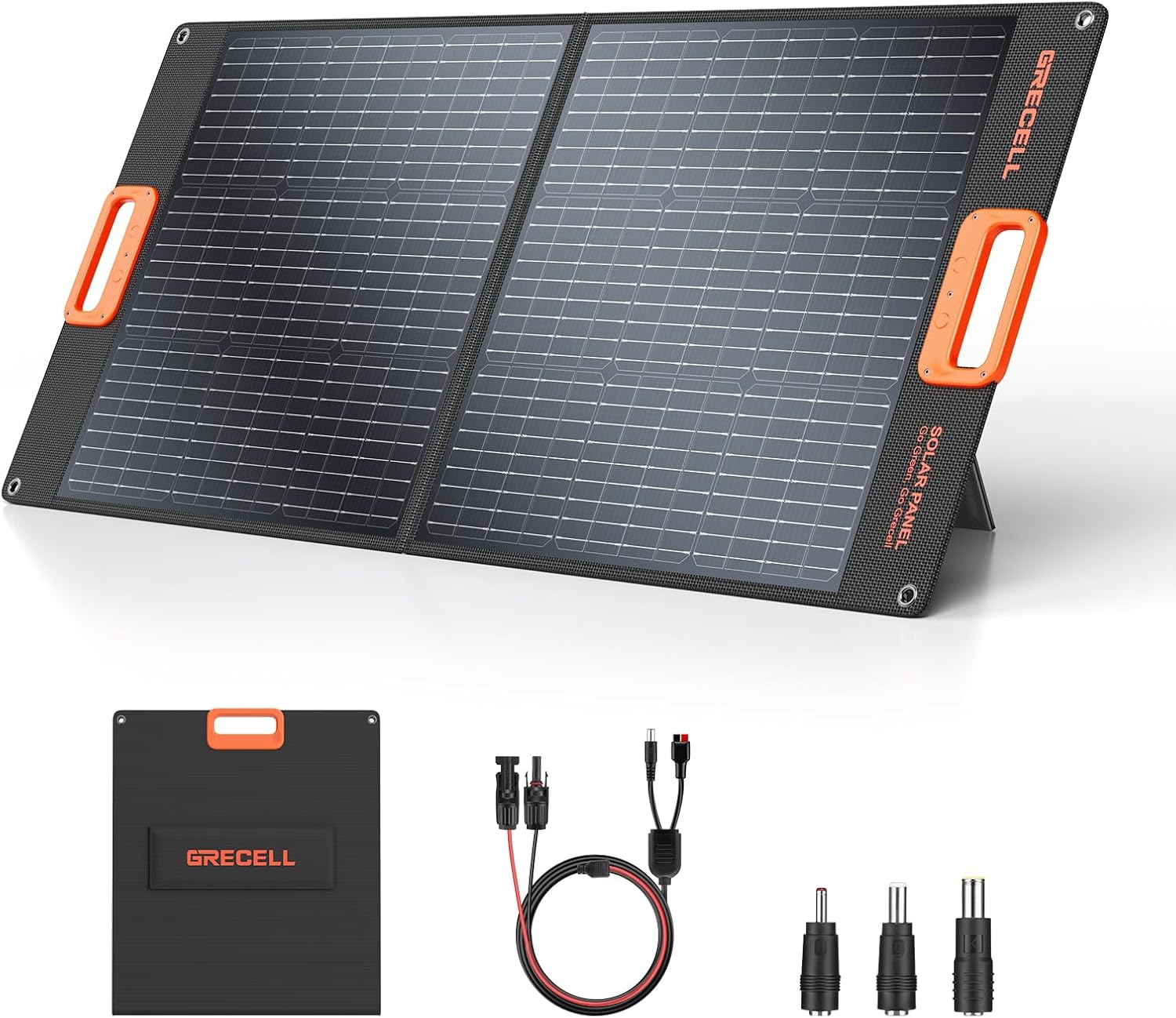

MADE FOR SOLAR GENERATOR–GRECELL 100W solar panel comes with a connector (can deliver 25A(max)current), 8mm/5.5*2.5mm/3.5*1.35mm/5.5mm*2.1mm DC adapter/Anderson Cable, compatible with most solar generators/portable power stations on the market(Jackery,Ecoflow,Bluetti,Paxcess,Suaoki, Flashfish portable generator, etc). Includes different sizes of connectors perfect to charge our GRECELL portable power stations as RV camping emergency power.

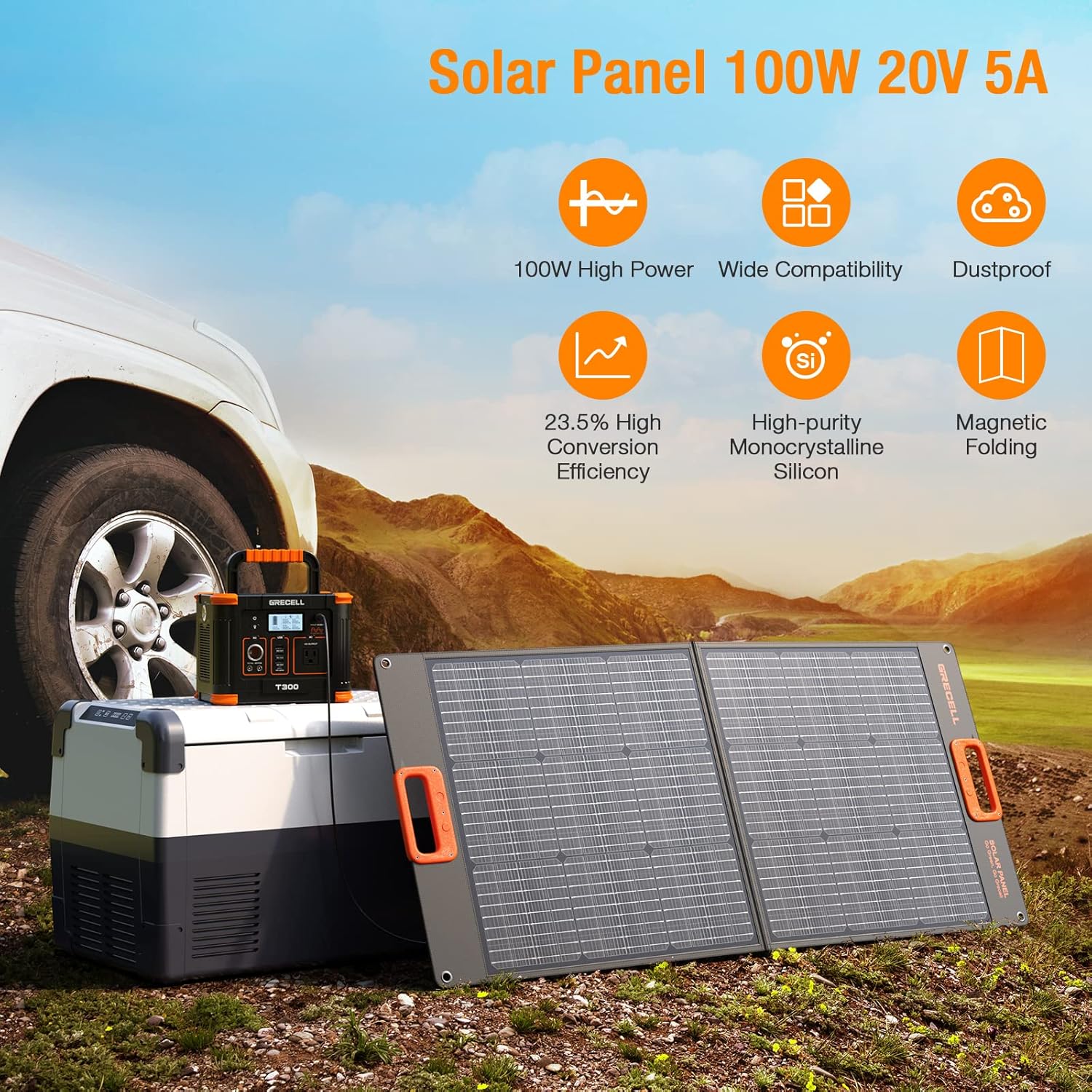

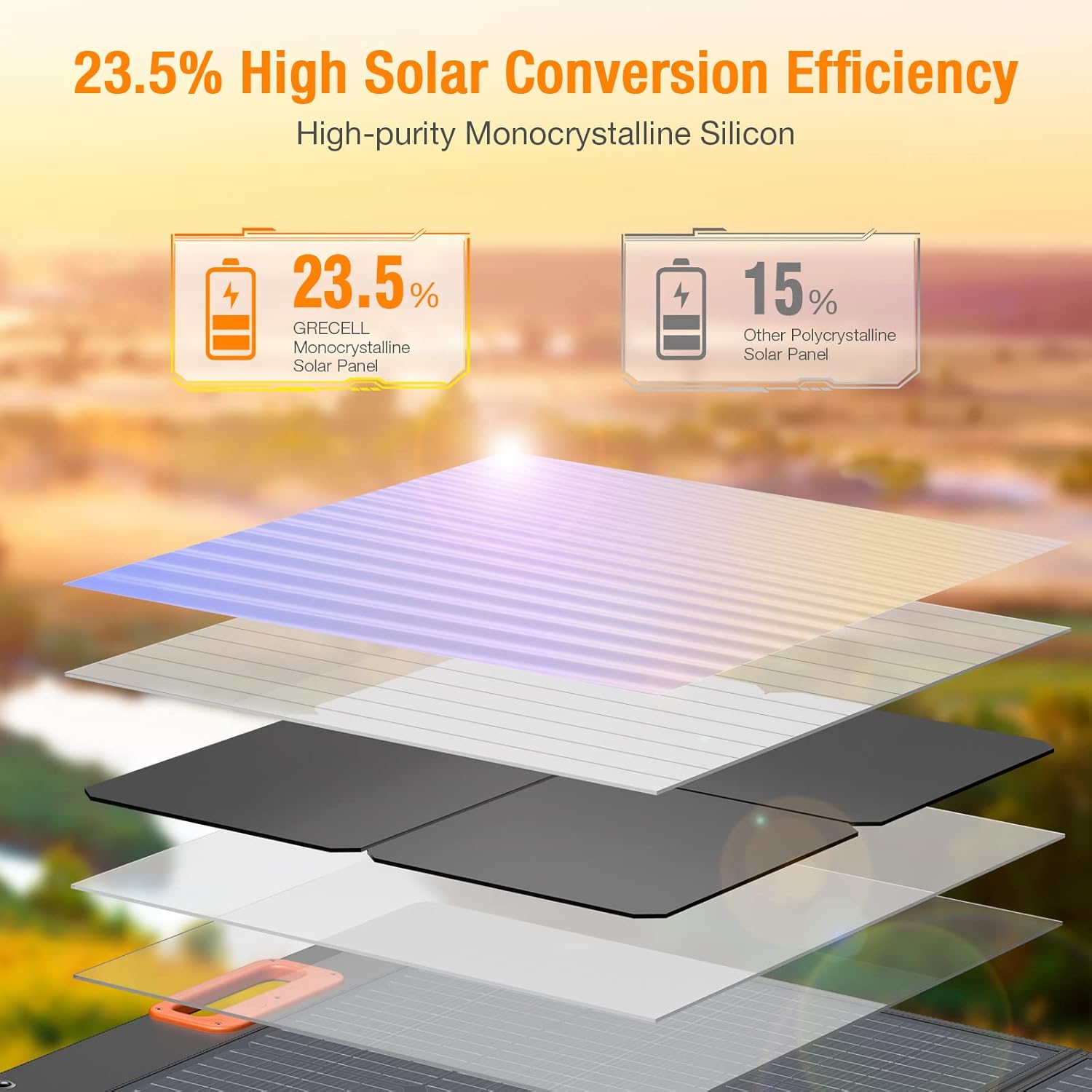

HIGH CONVERSION EFFICIENCY–Convert sunlight into electricity using a powerful array of monocrystalline solar cells to generate up to 100W and 20V of on-the-go power. The solar cells receive the most effective sunlight, up to 23.5% efficiency. The built-in smart chip intelligently identifies your device and maximizes its charging speed while protecting your devices from overcharging and overloading, providing more energy and a longer lifecycle than conventional polycrystalline solar panels.
FOLDABLE & PORTABLE– Designed for portability and convenience, the 100W solar charger features a lightweight, bifold design with a built-in zippered accessory pouch. Once unfolded, two incorporated kickstands allow for easy positioning on any flat surface to give you instant charge from sunlight. Reinforced grommets provide additional mounting and tie-down capabilities, they can hang on your RV or tent. When folded, it looks like a briefcase easy to transport, and won’t take up much room.
COMBINE TWO PANELS FOR MORE POWER– 100W solar panel supports series and parallel connections and you can expand your solar panel system to meet every need. Get up to double the power output by pairing your solar panel with another one to shorten charging times for portable power stations.
DURABLE & WIDE USE: The solar battery charger is made from durable waterproof Oxford cloth and protected by a highly durable layer of ETFE lamination enhancing the cell performance and extending the lifespan of the 20v camping solar panel. Dust resistant, high temperature resistant, ideal for outdoor activities such as camping, hiking, picnics, caravan, RV, car, boat, and unexpected power outages.
4 reviews for GRECELL 100W Portable Solar Panel for Power Station Generator, 20V Foldable
Add a review
Related products
Sports and Outdoor
ORCATORCH SD01 Mini Glow Tank, Scuba Dive Strobe Beacon Diving Signal Light
Sports and Outdoor
Ascher Ultra Bright USB Rechargeable Bike Light Set, Powerful Bicycle Front
Sports and Outdoor
Sports and Outdoor
Celestron – SkyMaster 25X70 Binocular – Outdoor and Astronomy Binoculars –
Sports and Outdoor
80Six Dual Certified Kids Bike, Scooter, and Skateboard Helmet, Designed by
Sports and Outdoor
Raleigh Bikes Alysa 24 Kids Flat Bar Road Bike for Girls Youth 8-12 Years
Sports and Outdoor
Sports and Outdoor
WILSON Golf Profile SGI Men’s Complete Golf Set — Regular, Right Hand,Red
Johnny –
Excellent Option to other more expensive units!
Although Amazon’s delivery could be better as there was a nice divot in the box, the solar panel itself was in perfect condition. It is easy to setup and very intuitive. It comes with a number of different connectors and adapters so, it is versatile as well. In my informal testing, the solar panels were inputting roughly 50-55 watts on an admittedly overcast California day. I used it briefly prior to in bright sunny weather and got anywhere from 80-90 watts in. Excellent!The build quality is good and the tilt-back legs work fine. Personally, not a fan of the velcro keepers for the legs as I just get tired of the ripping flesh sound velcro makes. But, thats a personal thing, nothing against the Grecell itself. It is nice and slim and will easily fit in a tiny spot in the back of your car on your camp trip.All in all, this is a great deal for those of us who are budget minded and don’t mind a relative newcomer to the market. As long as it works as advertised, I don’t care about the label on the front.Only time will tell how these items will fair over the long haul. Lets hope it gives the big boys a run for their money!
Mike Mcgee –
Perfect application for portable charging
Ive been using this panel for a little over a month now. I really like to use things in multiple situations and gauge its effectiveness; This panel is perfect for what I am using it for. I wanted something that was lightweight, easy to store and transport to supplement my mounted solar panels. I don’t always have the best options for parking in the sun, and the angle is never perfect with mounted panels.What I really wanted was a panel I could easily and quickly setup in the best location to supplement my charging. I have been extremely pleased with this purchase. It really filled the niche I needed with my setup in my camper van, and I also found myself using it in a lot of other applications because it is very portable and light weight.1. Very portable. I really liked how its all self contained, the cables, adapters, all come in a zipper pouch, and I ended up using it to store my 20 ft cables as well, so when it is time to set it up, its really a “Grab and go ” situation. The handles are very nice, and they have magnetic clasps so the unit stays closed until its time to use it. I really liked this feature, because it kept it safe, and stopped anything from slipping inside the panel when I was storing it. The feet are velcro secured and right on the unit, its really nice that they secure so well, and they are always right there to use. That is one of my favorite things about this panel is that its all ” Self contained ” I do not need to look for feet, cables, or anything, because its all right there.2. Well made The construction is very sturdy, I’ve been using it for right around a month at this point and it still feels and looks new to me. Its very easy to clean/keep clean, the material is strong. I really love the zippered pockets and velcro hold downs for the feet. It keeps it all “Tight” and very quick to store and grab when I want to use it.3. Comes with cable and adapters I really liked how it came with extra cable length, and adapters for any device you might want to charge. I have some older power stations and was really surprised to be able to just directly charge those. It really made it easy to work it into my solar setup. It saved me money too.4. Great power Its a 100watt panel and I felt the output was very nice. Being so portable, it was very easy to set it up in the best location for the area I was set up in. I used an extra 20 ft cable I had as well, so it is always optimal. This really was clutch for me as it kept me from always being “Just about” there to fully charged on all my stuff. It is really perfect for my application.Overall, I love this panel. It is so thin and lightweight, it just fits in a little niche I had for it like a glove. I have not had a single issue with this unit, and I cant imagine being without it anymore really. Just being able to add that extra wattage with the perfect output to my setup sent it to total perfection. Its just so nice how it folds in half and protects itself. I would really give this a try if you want something, Portable, well built, and effective.Something else to add. I have been just grabbing this single panel and a power station for car trips and even a short hike. I really love the portability of this VS my massive fixed panels.
Amazon Customer –
Works great!
Works with Jacory 700 W power generator. Lightweight easy fold up love the kickstand comes with adapters and extra cable to add links to hook up to a solar generator. Awesome product, good wattage in and full sun.
YuenX –
Good solar efficiency like any other 100W monocrystalline panel
At first glance, this Grecell 100W looks like a copycat of the Jackery SolarSaga 100 with its color scheme, folding design, and handles that close magnetically.IN A NUTSHELLThe Grecell 100W, like the Jackery Solarsaga 100, just folds in half and is held together by strong magnets, accented by a rigid, bright-orange carry handle across the top. Within the built-in carry pouch is a built-in MC4 connector cable ready to be plugged into a battery power station with an appropriate extension cable. On an overcast morning, it had achieved as much as 59W of output whereas the Jackery SolarSaga 100 got 53W. The differential was small, and so I tested it again on a clear, sunny day. The Grecell achieved 84W and the Jackery got 72W. That’s pretty good efficiency as most monocrystalline solar panels lose at least 25% due to power conversion. A built-in kickstand helps orient the panel at an optimal, 45 degree angle for maximum sun exposure, and a built-in pocket allows for cables to be stored. Note that this solar panel is NOT waterproof.It should be kept out of the rain, but then again, if it is raining, the sun probably won’t be out. Multiple adapters are included and I tested connectivity with Jackery, Goal Zero, and an off-brand Rockpals battery power station. All three worked with this panel as expected. As long as the power station is able to accept the panel’s 20V of output, you are golden. I also connected it in parallel with the 18V Jackery SolarSaga 100, and that took the panels from 53W/58W to a combined output of 102W. You should almost NEVER connect multiple solar panels in sequence/a series — you should almost ALWAYS hook them up in Parallel with a Y-split or combiner cable. (Goal Zero has a 4x combiner cable to hook up to 4 solar panels).Overall, the Grecell 100W solar panels are beautiful, sturdy, efficient, and portable and worked well with a variety of battery power station vendors and solar panels. Having the MC4 connector out of the box makes the Grecell compatible with an industry-standard connection, but some power stations may only accept APP (Anderson) connections — in that case, use the included MC4-to-APP adapter cable.TIPS/NOTES- Panel lifespan: Panels generally die/become inefficient between 25-30 years– They may last longer, but would produce less energy- Solar panels work best outdoor under full sun exposure– Although the panels will work under the shade or behind windows, charging efficiency is greatly diminished– Panels will STILL charge under cloudy conditions. So, keep the panels out even if you do not see the sun– Operating temperature range: 14F to 149F (-10C to 65C)– ONLY the solar panels can (and should) be directly under the sun while charging a battery power station— Keep the power station in the shade to prevent overheating- ALL panels must be uncovered to generate a charge– Do not completely cover one or more panels or the charging will stop- To maintain solar efficiency, the panels should be kept clean– Remove dust with a soft brush and wipe with a damp (NOT wet) cloth– Any residue, such as tree sap, should be removed as soon as possible– Keep panel away from water that spray at greater than 60 degree angles– Keep panel away from low-pressure (or stronger) water jet spray– Do not submerge the panel under water– Panels will work longer if they are kept away from water altogether- Do NOT bend the panels more than 30 degrees or risk breaking them!- Keep the panels away from fires and heatersCHARGING TIMESWhen using solar panels to charge battery power stations, the amount of energy the battery may accept could be throttled to prevent overcharging.Example: Jackery Explorer 1000 slowed incoming wattage from 70-80W to about 50W once it reached 70% battery charge.HOW MANY WATTS DOES A DEVICE USE?- Calc: Watts used by device = Voltage x Amperage- If a vacuum is 120V and 9.5A, it uses 1,140WHOW LONG DOES IT TAKE TO SOLAR CHARGE A BATTERY POWER STATION?- Calc: Hours to charge battery = Battery capacity (Wh) / (Panel Wattage x [0.5 or 0.75])– In a perfect lab environment, solar panels charge at the indicated wattage (ie. 100W)– Expect to only receive 50-75% on a good, sunny day (ie. 50W â 75W), depending on environmental conditions, panel’s age, and component quality– Tip: Even if it is overcast, the panels will STILL collect solar energy. Keep charging!- Charging with a 100W solar panel– Jackery Explorer 500: As fast as 6.7 hours [500 Wh / (100W x 0.75)]– Jackery Explorer 1000: As fast as 13.3 hours [1000 Wh / (100W x 0.75)]
