Universal Golf Cart Deluxe Upgrade Headlight Power Kits | Golf cart Turn

8 reviews for Universal Golf Cart Deluxe Upgrade Headlight Power Kits | Golf cart Turn

1.

   chindog – 5 January 2025

   It Really Works!
   I had originally purchased a similar turn signal kit that was a little cheaper. That one had a built in turn signal relay. During installation, I touched the wrong wire to the headlight wire, and fried the built in relay. The seller told me there was no replacement relay circuit board available, so that unit was trash. This one has a plug in relay. If it goes bad, the relay can be easily replaced, and that makes this unit the best choice. Installation was fairly straight forward. Stringing the wires through the chassis was the hardest part, and finding a place to mount the horn was a little more difficult than I had expected. Once everything was hooked up, it worked exactly as it should. I have been very pleased with this upgrade, and would highly recommend it for your cart!

2.

   OD – 5 January 2025

   excellent support but it is slow
   after receiving the instruction for the wiring harness, i was able to tinsall this kit but the flasher stayed on steady. I contcted the vendor and they sent me a new harness. Support was excellent, just a little slow due to the time zone difference.

3.

   CB – 5 January 2025

   Deluxe Upgrade Headlight Power Kit

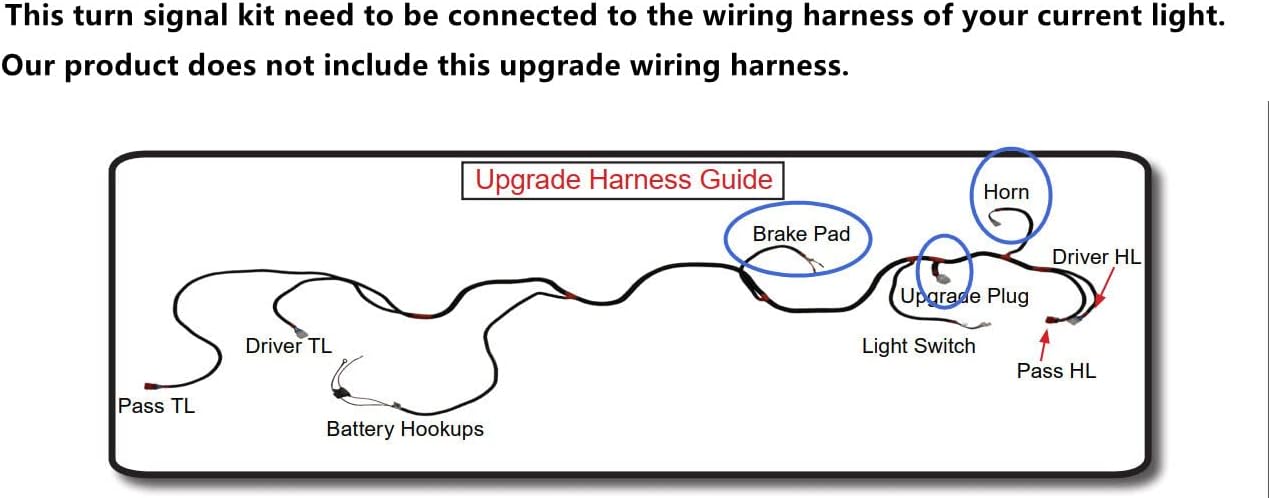

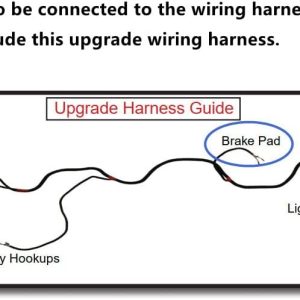

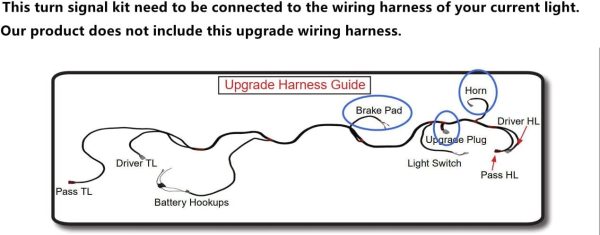

   I installed this and it works perfect, you will need the harness in addition to this. My golf cart had the harness already installed because lights were installed when I bought the cart.Search for harness using this:Golf cart Light Wire Upgrade Harness for Club Car DS/EZGO TXT RXV Yamaha with 9 pin Plug

4.

   brian beaver – 5 January 2025

   Not universal at all
   Product came with terrible instructions and being very familiar with wiring as I am there should be a pin out sheet included. Do your self a favor and buy something that comes with a better set of instructions.

5.

   Ricky – 5 January 2025

   Turn signal cover didn’t fit.
   The Turn signal cover didn’t fit because of the U bolts. I I got it to go on but then it a little bit and popped off breaking one of the little plastic pins. If I could get a replacement cover for the turn signal lever part . That would be great… but over all it was plug and play with the headlights. Everything works as it should. Just the two u bolts thingy were to long causing the plastic cover to not snap in easy. Which then broke a plastic pin part and poptoff…

6.

   Muzaffar Chaudhary – 5 January 2025

   Great fit
   Golf cart 2011 precedent..easy install since I had wiring harness. Plug and play

7.

   Bill – 5 January 2025

   Great product
   I accidentally fried my more expensive set of lights control box by hooking to the wrong wire coming out of my voltage reducter.After doing some research, this box looked exactly like the one I fried (wire colors and all matched up), so I took a chance and ordered it. I replaced my control box with this one and it works flawlessly! I paid almost $300 for the other kit. This one works just as well.The turn signal and rear of the kit looks to be the same as the more expensive version I ordered.Give this brand/kit a chance. You’ll be glad you did!

8.

   Linda Chadwick – 5 January 2025

   With this pin out it will be much easier

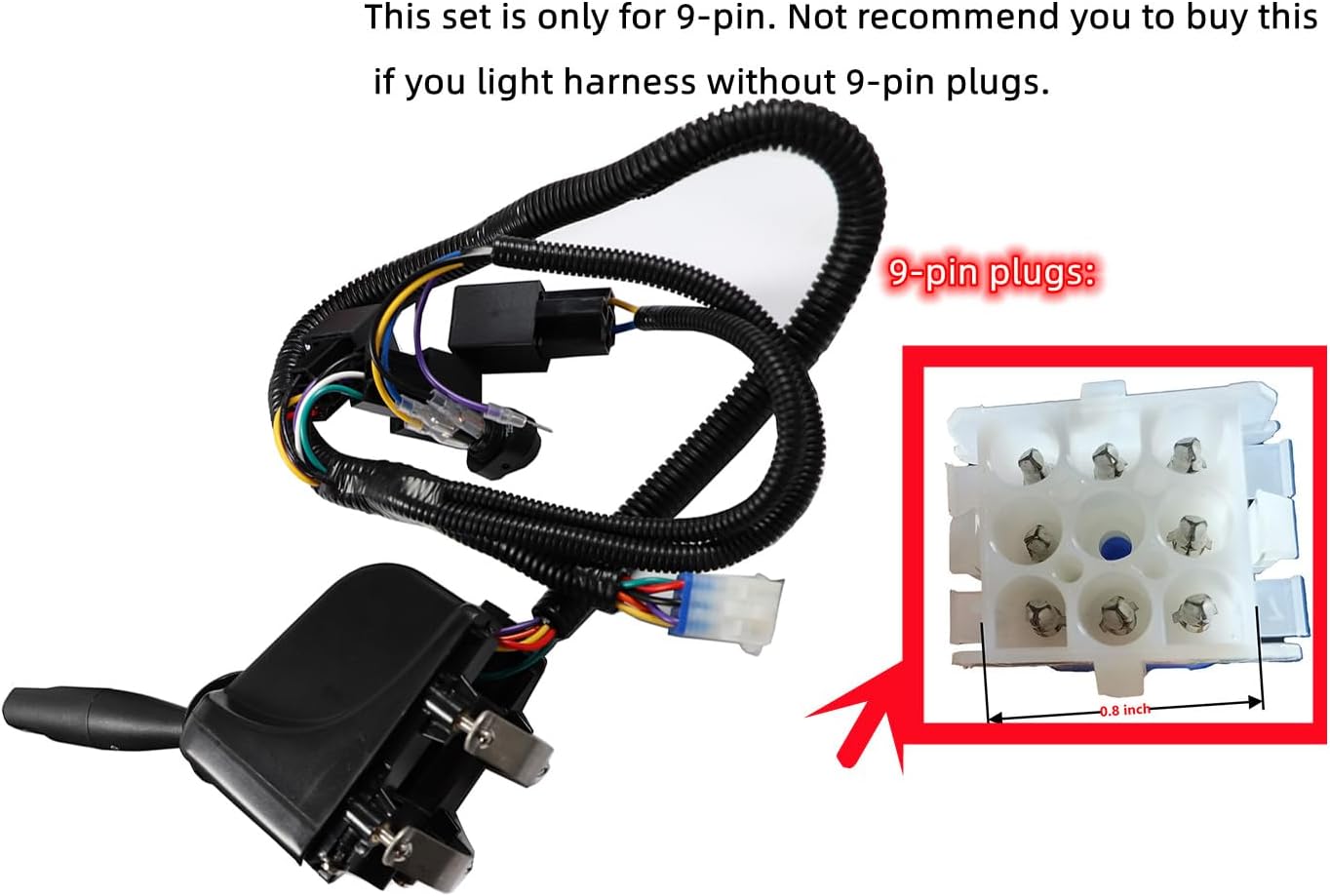

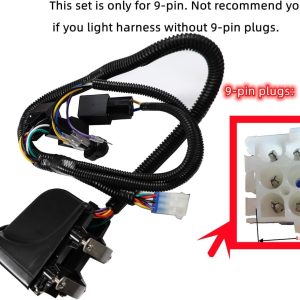

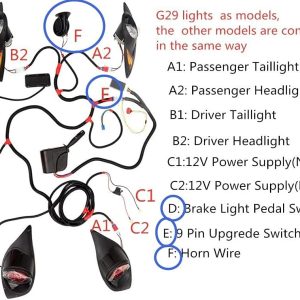

   This unit comes with a full color installation sheet and has a horn and head light switch built in. Those features plus price is why I bought it. I installed it removing the nine pin plug and wiring per the pin out included in the directions. I power it up and one relay clicked but nothing worked. I was filling out a return authorization when I remembered the two star review from Corey on Sept 22, 2022. He said the pin out was wrong and gave a few new pin outs. I moved the power to the Blue wire and it started to work. Below I completed Corey’s pin out tableRead Corey’s review everything applies. Throw the supplied directions away, do not use them.Correct pin outBlue-“ +” lead from battery (recommend adding inline fuse)BLACK- “-“ (ground to chassis)Orange- 12V power for hornPurple (single spade by flasher rocker switch)- 12V power for head and tail lightsPurple (on 9-pin connector) 12V wire from brake switchRed Left front turn signalYellow Left brake lightWhite Right brake lightGreen Right front turn signalThere is no harness supplied for the brake pedal switch. You will have to make your own. Run a fused 12V to the switch and the second wire from the switch goes to the purple wire on the nine pin connector.It was very time consuming and frustrating but now it works.
