Product Description
The LUVKNIT Story
LUVKNIT intends to be a driving force behind the push for sustainable living and energy independence, our solar products makes it possible for individuals to minimize their carbon footprint by reducing the need for grid power. We are optimistic that humankind can achieve a sustainable future where renewables are at the core of our energy supply.
LUVKNIT 100 Watt Portable Solar Panel for Power Station
The Luvknit 100W Solar Panel is a reliable, practical, and convenient folding portable solar panel. With up to 23.7% high efficiency monocrystalline solar cells, you will get greater power efficiency than polycrystalline solar panels. This unit will allow you to enjoy your favorite outdoor activities like hiking, camping, RVing, picnic, traveling, and more! Luvknit provides reliable power that you can take your adventure anywhere.
Upgraded Version to Meet Your More Needs
DC5521 adapter for Rockpals 250W/350W/500W, FlashFish 200W/300W,PAXCESS ROCKMAN 200W/300W/500W, PRYMAX 300W
Anderson adapter for Jackery Explorer 1000,ROCKPALS 300W,Ecoflow
DC7909 adapter for Jackery Explorer 300/500/1000/1500,Goal Zero Yeti 160/240/300, Anker 521 Power Station, BLUTTI EB 240,GRECELL 300W/500W/1000W
DC8020 adapter for Jackery Explorer 1000 v2/600 Plus/880 Plus/1000 Pro/1000 Plus/1500 Pro/2000 Pro/2000 Plus/3000 Pro
XT60 adapter for EF ECOFLOW RIVER Pro 720Wh/DELTA 1260Wh/Anker 757 PowerHouse 1229Wh
Meanwhile,there is a complimentary 4 in 1 DC adapter DC5521(Female) to DC5525/5521/35135/909/8020(Male) to expand the folding solar panel’s compatibility.
The USB-A port and USB-C port are fast charging,allowing you to efficiently recharge multiple USB devices while enjoying your outdoor activities.
Please Note:Some portable power stations have a maximum input power limit. For instance, for Jackery Explorer 160 it has a maximum input of 42W. Even when using our 100W solar panel in optimal sunlight conditions, the power it receives won’t exceed its 42W limit. This does not indicate that our solar panel has insufficient power output. Please verify your power station model and check if it has a maximum input power limit before placing your order.
If you want to charge a 12V battery (LiFePO4, lithium, AGM, lead-acid, GEL, etc.) using this 100w solar panel, please be sure to add a MPPT/PWM charge controller(not included ,you need to buy it separately), otherwise there is a risk of damaging the battery.
Efficient Conversion & Smart Charging
The smart chip inside can adjust the current to match the fastest charging speed for the device automatically.Has a high conversion efficiency up to 24%, which is higher than the market level.
Waterproof & Durable
The ETFE material on the surface is wear-resistant which can extend its shelf life.The solar panel is IP65 waterproof, but in order to maximize the service life, please try not to get wet.
Portable & Foldable & Easy to Carry
It’s made for outdoor activities and is small and lightweight.The panel is foldable, and the magnetic closure design of handle is easy for carrying.
Portable Solar Panel for multiple 12V batteries
100W solar cell is up to 24% efficiency, providing endless power for 12 volt battery (AGM, LiFePo4, lead-acid, gel, lithium, deep cycle batteries) of cars, boats, ships, trailers and RVs. foldable portable monocrystalline solar panels are rugged, reliable, and easy to use. Intelligent protection against reverse polarity, overcharging, short-circuit and reverse current. Harness the sun with portable solar power wherever you are.
Technical Specifications
Maximum Power(Pmax) 100W Cell Efficiency 24% Optimum Operating Voltage(Vmp) 18V Optimum Operating Current(Imp) 5.5A Open-Circuit Voltage (Voc) 21.6V Short-Circuit Current (Isc) 6.1A DC Charging Port 18V/5.5A(max) USB Charging Port 5V/3A(max) Folded Dimensions 23.6*20.9*1.06 inch Unfolded Dimensions 47.3*20.9*0.2 inch Net Weight 8.15 lbs Operating Temperature Range 14°F ~ 149°F Customer Services 24-month
FAQ About LUVKNIT Solar Panels:
Q1:Why the solar panel fails to reach 100W rated power output in actual useage?
The actual output power of a 100W solar panel is typically lower than its rated power due to several factors:
Solar Irradiance: Rated power is measured under Standard Test Conditions (STC), which assume optimal conditions: 1000W/m² of sunlight, a panel temperature of 25°C, and direct sunlight. In real conditions, sunlight intensity is often lower due to cloud cover, time of day, or geographical factors, leading to reduced output.
Temperature: Solar panels lose efficiency as their temperature rises. High temperatures cause a decrease in output power, as most panels have a negative temperature coefficient, meaning their output decreases as the temperature increases.
Angle and Orientation: If the solar panel is not positioned to directly face the sun or at the optimal angle, it will receive less sunlight, resulting in lower output.
Panel Aging: Over time, solar panels degrade, and their efficiency decreases.
Shading: Even partial shading (from trees, buildings, etc.) can significantly reduce a panel’s output, as it affects the entire panel’s performance.
Q2:What should I do if I receive this solar panel and find that it is not compatible with my portable power station?
First, please carefully confirm before placing an order whether your portable power station’s solar input port is compatible with any of the adapters we provide (XT-60, Anderson, DC7909, DC5521, DC8020, DC55315). If you’re unsure, feel free to consult with us beforehand. Additionally, if you receive the solar panel and find it incompatible with your portable power station, please let us know—we’ll help resolve the issue for you.
Q3:What should I know about the operating temperature, storage and use o f the 100W Luvknit Solar Panel?
The operating temperature of the Luvknit Solar Panel is -25°C–65°C (-14°F–149°F). The solar panel weighs 8.6lbs, with a folded size of 23*21*1.06 inches. It is easy to carry and suitable for off-grid adventures. The solar panels need to be folded up when not in use, which provides sufficient protection for the product. To extend the service life of the panel, ensure that the product is not exposed to external forces/impacts when not in use. The solar panel itself is made of glass and must not be dropped, pierced, bent, or sat on. These actions may break the glass and render the panel unusable.
Q4:Can 100W solar panels be connected in parallel or in series?
Yes，Luvknit solar panels can be connected in series or parallel via its interfaces.The positive connector is a male connector and the negative connector is a female connector.Connecting them in series (+ connected to -,+ connected to -),the voltage will be increased;while connecting them in parallel(+ connected to +,- connected to -),the current will be increased ,thereby the total power will be increased and you can charge a high-capacity power station more quickly.When considering series or parallel connections,please check the specification of the solar controller and the power station you are using to ensure they support higher voltage and current to prevent damaging your equipment.When connecting two pieces in series or parallel, the voltage of both pieces must be the same. Please note the cable for series or parallel connection is not included,kindly buy it separately.
Q5: Why is my electronic device charging slowly or not charging?
(1) Please check the environment and weather. Electricity generation maybe reduced or disrupted during cloudy or rainy conditions;(2) Please confirm the solar panel is oriented towards direct sunlight.Adjust its position to ensure sufficient sunlight exposure on the surface;(3) Please check if the output cable is properly plugged in or if there are any defects or loose connections.Try reconnecting the output cable;(4) Please inspect the surface of the folding solar panel for any obstructions and remove them;(5) Please check if your charging device is overheating. Some devices may automatically adjust their charging power or even pause charging based on temperature conditions. In such cases, please pause using the device or shut it down, wait for it to cool down, and then resume charging.
Customer Reviews
4.5 out of 5 stars
130
4.5 out of 5 stars
34
4.0 out of 5 stars
61
4.3 out of 5 stars
29
4.9 out of 5 stars
15
Capacity
10,000mAh 10,000mAh 10,000mAh 20,000mAh /
Item Size
6.1 x 9.5 x 1.2 inches 5.5 x 2.9 x 0.7 inches 5.5 x 2.9 x 0.7 inches 8.6 x 4.3 x 1.2inches 91.5x 20.8x 0.6inches
Input Port
Type C Type C Micro USB Type C /
Output Ports
USB-A *2 USB-A *2 USB-A *2 USB-A *2 MC4/SAE/DC5521/Type C/USB-A/SB-C
Output power
DC 5V/3A DC 5V/3A DC 5V/2.4A DC 5V/3A 200W 18V
Solar Power
10W 1W（Emergency use） 1W（Emergency use） 2W（Emergency use） 200W
Solar Panel Full Recharge Time
5H / / / 500wh power station is fully charged within 4 hours
【High Conversion Efficiency】Up to 24% , convert sunlight into electricity using a powerful array of monocrystalline solar cells to generate up to 100W of on-the-go power. Under adequate sunshine, the 500wh power station is fully charged by Luvknit 100W solar panel within 6 hours. Also this portable solar panel is designed with an auto-optimization feature that automatically reconnects when sunlight returns after a charging interruption
【Versatile Output and Wide Compatibility】The upgraded Luvknit 100W foldable solar panel is equipped with a DC5521 cable output, which can be seamlessly connected to our free 6-in-1 cable interface (XT60/ANDERSON/DC5525/DC7909/DC8020/DC55315), ensuring compatibility with 99% of outdoor power stations on the market; in addition, it is equipped with a 5V USB fast charging port, which can charge USB devices such as mobile phones to meet all your charging needs. More usage scenarios are waiting for you to develop, truly realizing the use of solar energy anytime, anywhere

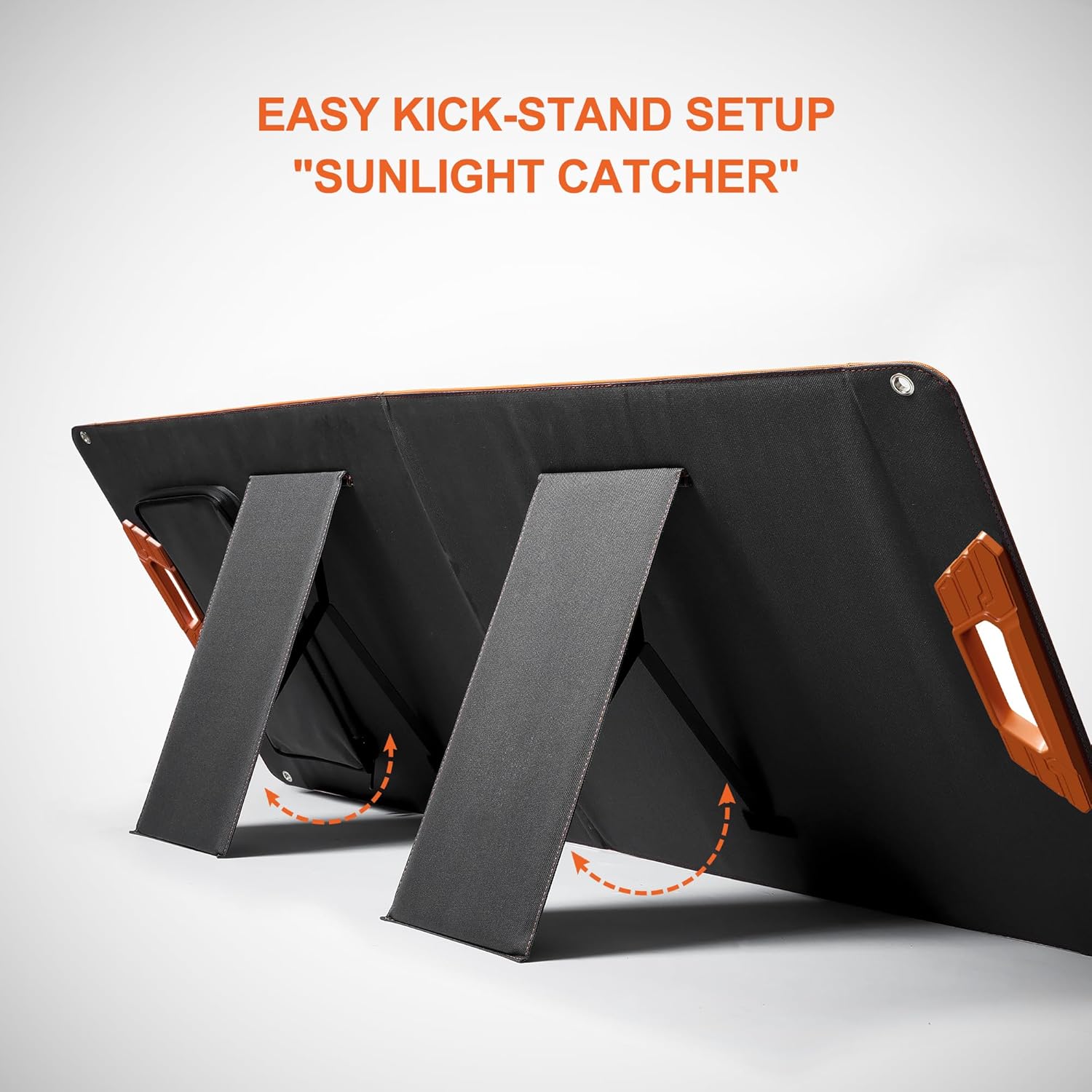

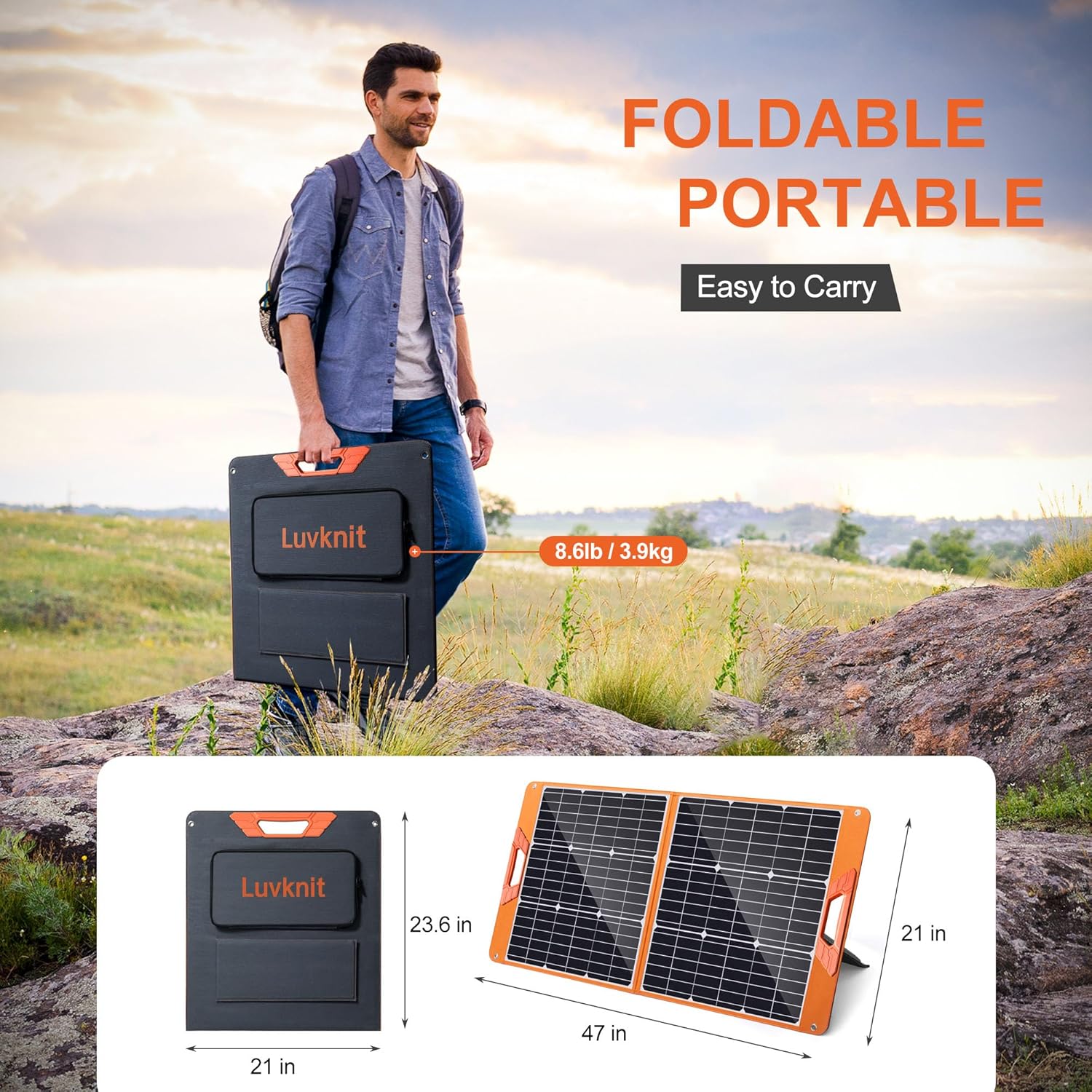

【Portable & Foldable & Easy Setup】The camping solar panel only weighs 8.6 lbs,the folded size is 23*21*1.06 inches and it comes with a magnetic handle for easy carrying around. Equipped with 2 kickstands, the portable solar panels for RV can be firmly placed on the ground.Within a few seconds you can easily adjust the foldable solar panel’s angle to optimize sunlight absorption and set it up to efficiently harness solar energy. Note:The 100W solar panel can’t store electricity

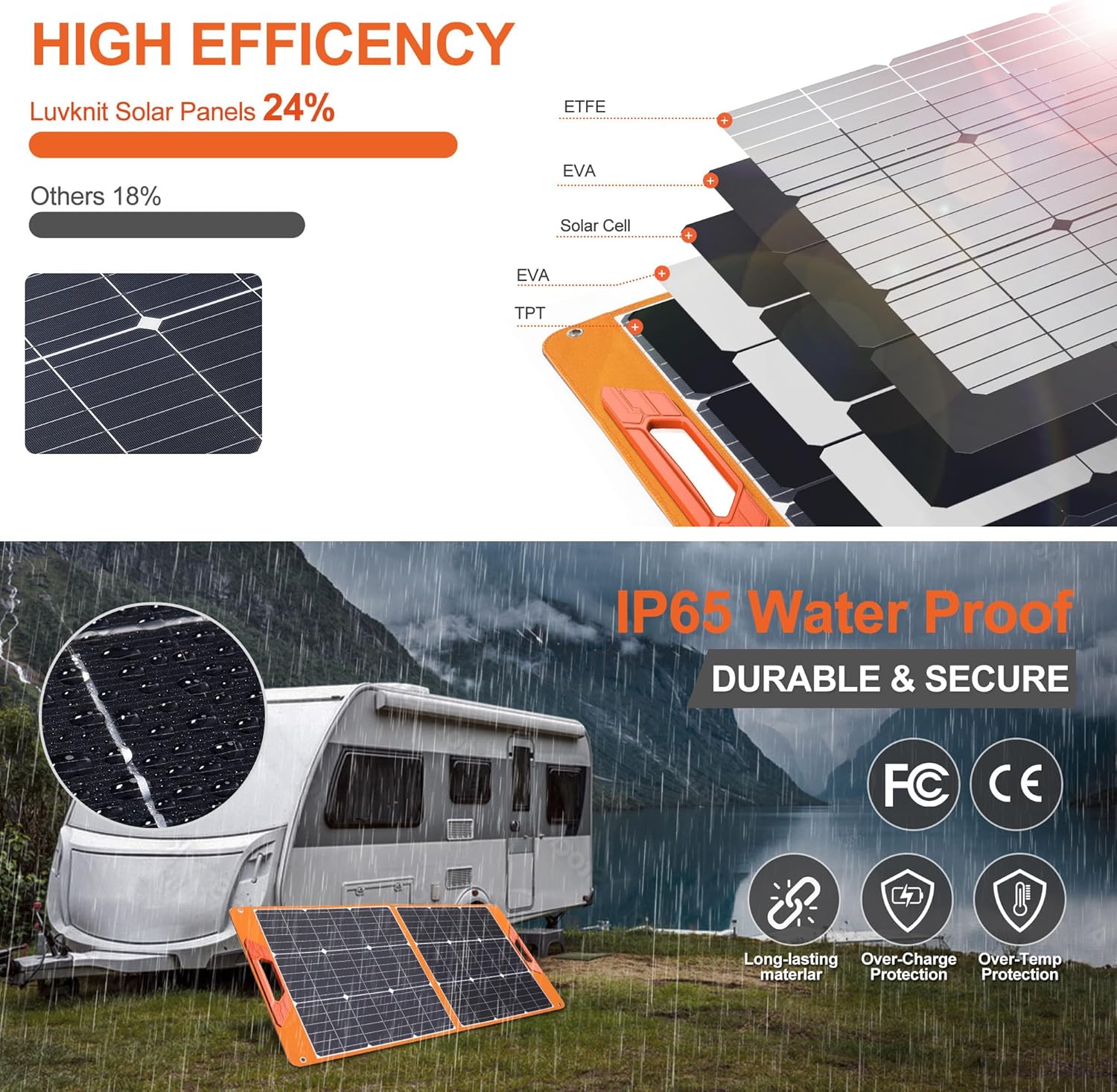

【Long-lasting & IP65 Waterproof】100W folding solar panel utilizes ETFE coating material, ensuring waterproof, dustproof, and long-lasting durability, capable of withstanding any harsh weather . Additionally, there’s a pocket on the exterior of the camping solar panels where the controller is housed, ensuring worry-free outdoor activities even during sudden rain. However, the control box is not waterproof,in order to prolong the lifespan of 100watt solar panel, please don’t soak it into water

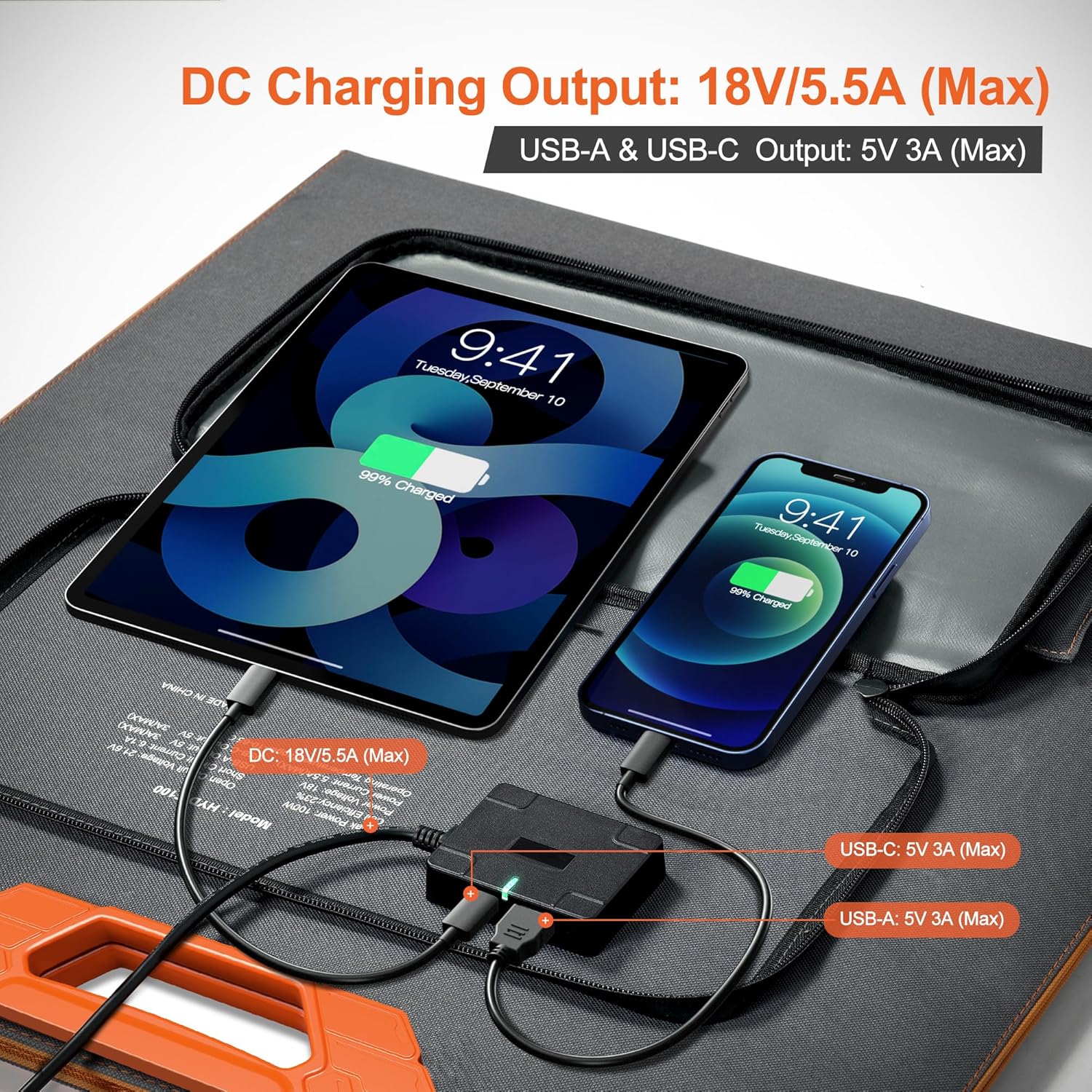

【Smart Charging Technology】The controller’s dual USB-A and USB-C outputs are intelligently controlled by smart IC chips, automatically adjusting to the optimal charging efficiency for your devices. Also, it features overvoltage protection, overcurrent protection, short circuit protection, and overtemperature protection. The DC output is also equipped with reverse charging protection.You can enjoy outdoor living to the fullest without worrying about damaging your devices while charging
【Combine Two Panels For More Power】100W solar panel supports series and parallel connections and you can expand your solar panel system to meet every need. Get up to double the power output by pairing your solar panel with another one to shorten charging times for portable power stations
【𝐀𝐛𝐨𝐮𝐭 𝐓𝐡𝐞 𝐎𝐮𝐭𝐩𝐮𝐭 𝐏𝐨𝐰𝐞𝐫】Some portable power stations have a maximum input power limit. Even when using our 100W solar panel in optimal sunlight conditions, the power they can receive won’t exceed their maximum input power limit,which could be lower than 100W. But this does not indicate that our solar panel has insufficient power output. Please carefully verify your power station model and check if it has a maximum input power limit before placing your order

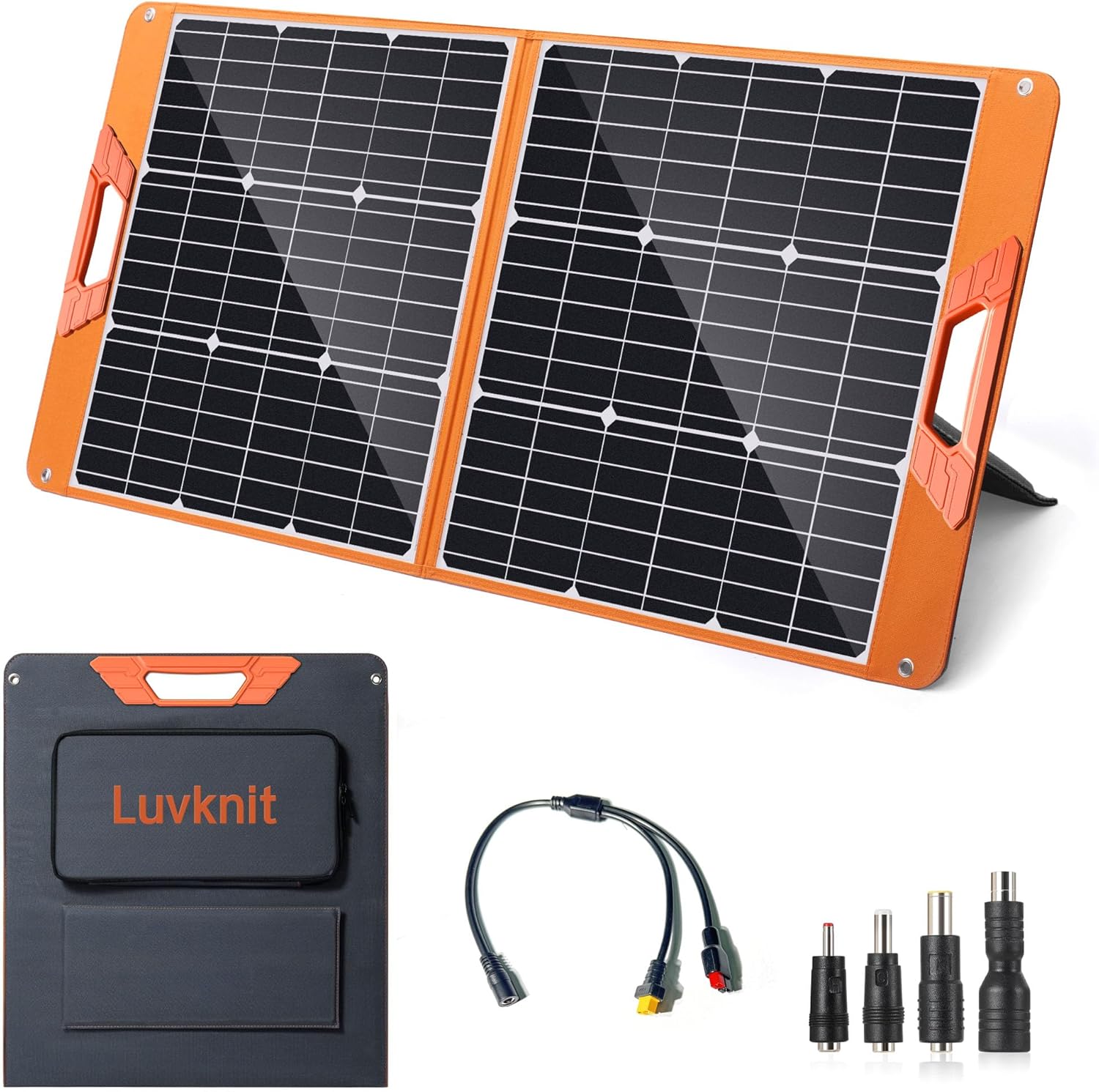

【What You Get】 1xLUVKNIT 100 Watt Solar Panel, 1x Power Controller, 1xDC5521 To Anderson/DC/XT60 Cable, 4x DC5521 To 8020/7909/5525/35315 Adapters, 1x User Manual. Meanwhile, LUVKNIT provides 12-month warranty and 30-day money-back guarantee as well as 7*24 friendly customer service
